AlfaVap Inline

Efficiently concentrate heat-sensitive, low- to medium-viscosity and low- to medium-fouling products with the multi-effect Alfa Laval AlfaVap Inline. Purpose-built on a modular process skid, this ultra-compact, energy-efficient rising film plate evaporator reduces capital expenditures, operating expenses and carbon footprint while raising product quality and accelerating time to market.

AlfaVap Inline climbing film evaporator

Evaporation optimized for the food industry

  • Ultra-compact evaporator, like no other
  • Lower retention time, higher product quality
  • Easy to operate
  • Easy to access, minimal maintenance
  • Global company with 140 years of food processing expertise and extensive local service network

Sustainably concentrate food products with the Alfa Laval AlfaVap Inline climbing film plate evaporator. It takes up less floor space, is lower in height and more lightweight than comparable evaporators. Manufactured using less steel, it requires less fuel to transport and a smaller concrete foundation for support. It fits into tight spaces or existing structures, reducing installation costs.

The AlfaVap Inline reduces retention time to minutes. It minimizes product exposure to heat by up to five times compared to falling film evaporators, resulting in higher product quality.

Typical applications include fruit juices, sugar and sweeteners, herbal extracts, and protein hydrolysates.

With the Alfa Laval plate evaporation system, we achieve better ginseng flavour- Mr. Lee Kumwoo, Production Manager at Daedong Korea Ginseng Co. Ltd.

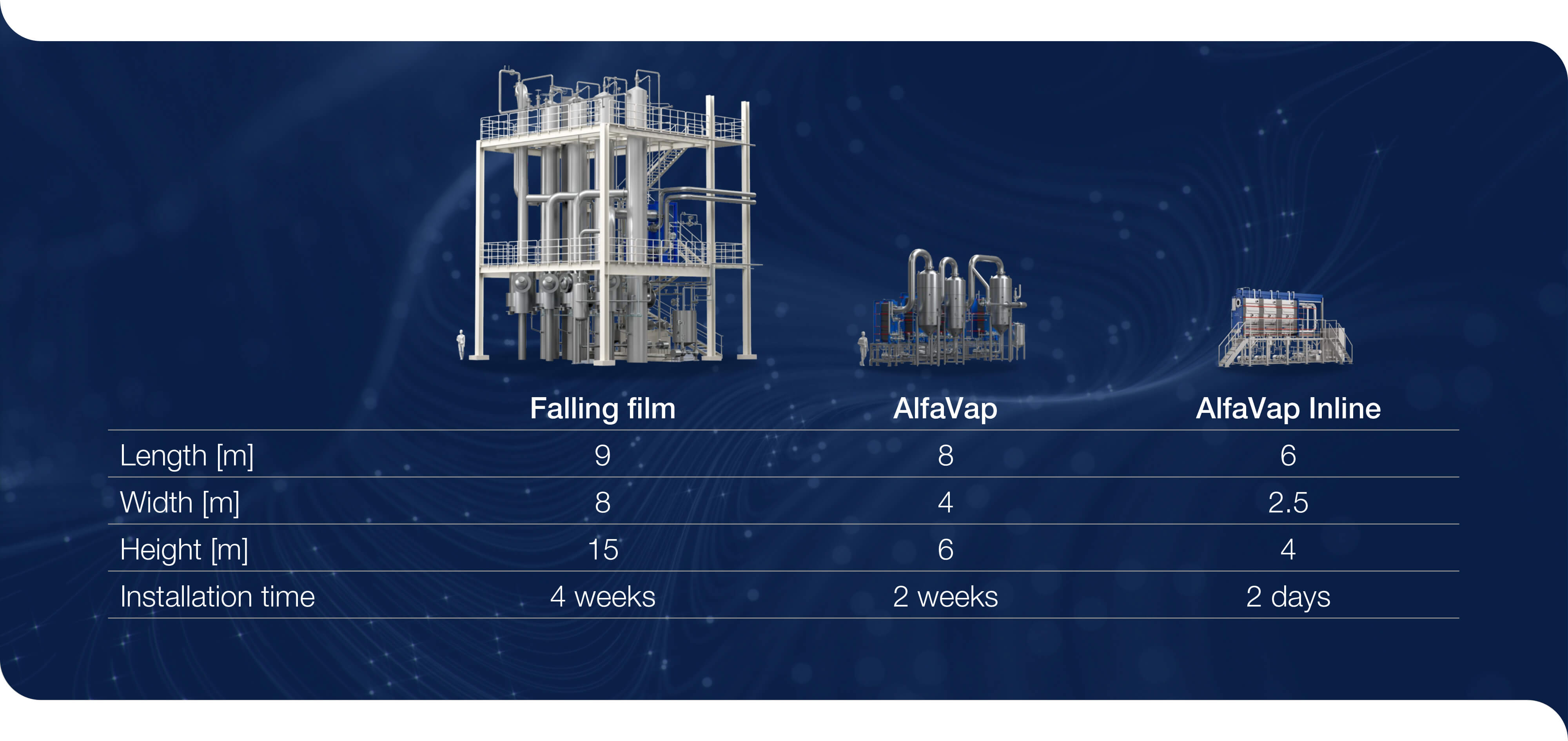

Comparison: Falling film, traditional AlfaVap system and AlfaVap Inline

AlfaVap inline climbing film evaporator illustration
.

Products

Services

Food system services

Alfa Laval Food system services help extend the performance of your food systems by maximizing the performance of your processes. This enables you to:

  • Continually improve your operations to maintain competitive advantage
  • Focus on uptime, optimization and availability
  • Maximize return on investment throughout the life cycle of your food systems

Learn more about service offer


.

Happy customers

Upgrading ginseng extract concentration system improves functional food quality

Daedong Korea Ginseng, a premier producer of functional ginseng based foods, set out to increase production capacity by 60% to meet steadily growing market demand. The company also decided to build a new production facility while, at the same time, optimizing its factory footprint. Among the company’s strategic objectives: improving thermal efficiency and simplifying operations and maintenance of its ginseng extract concentration lines. The solution?



Find out here

ginseng extract powders smaller

.

How does this plate evaporator work

The AlfaVap Inline climbing film plate evaporator optimizes process performance, producing a higher quality concentrated liquid than comparable evaporation systems. It comprises a complete module with one or more evaporator plate packs connected to a vapor-liquid separation vessel. Each evaporator consists of a plate pack. The liquid feed enters the evaporator through two inlets at the unit’s bottom. As the liquid flows over the plates in one channel, the steam in the other channel heats the plates, causing the liquid to evaporate. The heated vapour rises through the channels. The vapour-liquid mixture leaves the plate heat exchangers and enters a vapour separator, an integral part of the AlfaVap Inline module. The mixture separates into a vapour, which exits through an outlet at the top, and a liquid, which flows through an outlet at the bottom of the separator for subsequent processing in the next effect, or to the final extraction point.

AlfaVap Inline climbing film evaporator can operate with small temperature differences, allowing for an increase in the number of effects without increasing the overall temperature difference of the evaporation station, thereby reducing steam consumption and operating costs
