The Alfa Laval Diabon® plate-and-frame heat exchangers are used for tough corrosive media. This range of heat exchangers combine Alfa Laval's know-how in heat transfer with Germany based SGL Carbon's expertise in graphite process equipment. Alfa Laval Diabon® gasketed plate-and-frame heat exchanger combines high-efficiency heat transfer benefits with the exceptional corrosion resistance of graphite material.

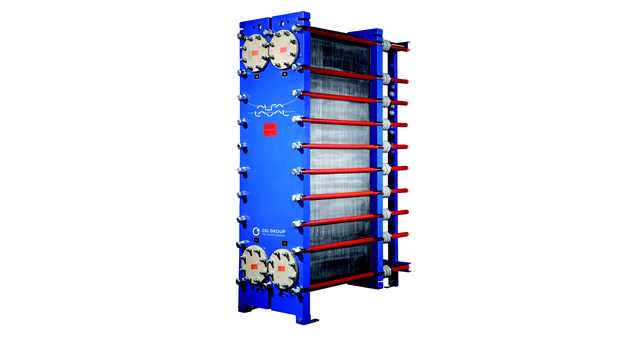

Diabon 640x360

Alfa Laval and SGL Carbon, Germany, worked together to develop DIABON® plate heat exchangers. This collaborative effort combines Alfa Laval’s plate heat exchanger know-how with SGL Carbon’s expertise in graphite process equipment. The resulting product combines the high-efficiency heat transfer benefits of conventional plate heat exchangers with the exceptional corrosion resistance of graphite material.

DIABON® plate heat exchangers are therefore ideal for handling highly corrosive fluids such as:

  • hydrochloric acid and gas in all concentrations
  • sulphuric acid up to 90%
  • hydrofluoric acid up to 60%
  • all concentrations of phosphoric acid
  • pickling acids in surface treatment plants
  • electrolytes used in the mining industry
  • mixed acids
  • chlorinated hydrocarbons
  • catalysts such as aluminium chloride.

How it works

Alfa Laval DIABON® plate heat exchangers work on the same principle as conventional plate heat exchangers, except that the plates separating the media are made of special graphite materials.

The graphite plates are available in three different material grades, DIABON® F100, NS1 or NS2. The channels formed when these graphite plates are assembled in a plate pack are sealed by PTFE gaskets.

In addition, the tightening bolts on the frame are fitted with
springs to compensate for thermal expansion of the
plate pack, hence minimizing the risk of cracking the plates.

PTFE rope gasket

Alfa Laval DIABON® plate heat exchangers are all supplied with a PTFE rope gasket. When the heat exchanger is assembled, this gasket rope is flattened to a very thin film approx. 0.2 mm).

The thinness of the gasket means that the area in contact with the chemical is very limited, resulting in an extremely long service life. To date, the gasket has proved resistant to attack by all known chemicals, as well as resisting very high temperatures (>180°C).

In addition, the gasket can be kept in storage for virtually unlimited periods.

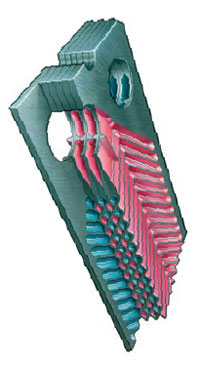

Diabon HIW
