Wall mounted cleaning nozzles

Get 100% cleaning coverage of tank shadow areas with the Alfa Laval wall mounted cleaning nozzle. Paired with a top-mounted tank cleaning machine, this cleaning nozzle, installed flush with tank wall or bottom, cleans underneath agitator blades, coils and other hard-to-reach areas. Its adjustable nozzle with optimized high-impact spray pattern eliminates the risks associated with inadequate tank cleaning, ensuring higher product yield, better end-product quality, and reduced operating costs.

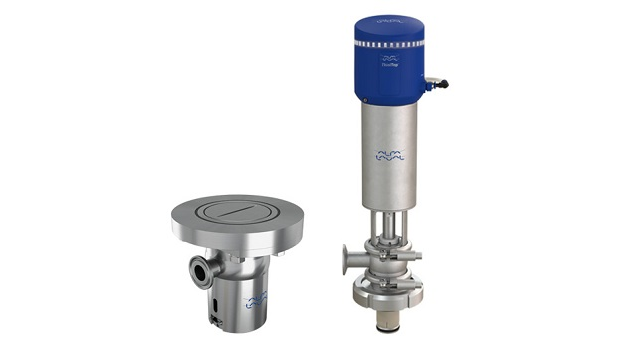

PlusClean and Free Rotating Retractor with ThinkTop

More efficient tank cleaning improves process efficiency and safety as well as product quality and yield

  • 100% tank cleaning coverage in shadow areas makes batch and continuous process changeovers faster, safer and contaminant free
  • No risk of product contamination due to optimized, high impact spray pattern
  • Highly efficient, precision tank cleaning even at low pressures, with up to 80% reduction in use of energy, water and cleaning media
  • Easy to install, operate and clean
  • Fast return on investment

Raise productivity, safety and yield by eliminating risk and contamination in your tank with the Alfa Laval wall mounted cleaning nozzle paired with any top-mounted tank cleaning machine. Choose either a standard media-driven version or UltraPure version and the spray patterns that best suits your process no matter the tank size, design or cleaning duty. Options include pneumatic model and control unit for process monitoring and feedback. This cost-effective tank cleaning nozzle targets shadow areas with pressurized cleaning media. Perfect for use across the dairy, food, beverage, home-personal care, pharmaceutical and other industries, it cuts energy, water and cleaning media costs, minimizing environmental impact and providing low total cost of ownership.


How does a wall mounted cleaning nozzle work?

Installed flush with the surface of the tank wall or bottom, a wall mounted tank cleaning nozzle contains a spring-activated piston, which opens and closes the nozzle depending on the pressure of the cleaning media. It is available in two versions: media driven or air-operated. During the Cleaning-in-Place process, the pressure created by the cleaning media activates the media-driven version, while the pneumatic air-operated version has an actuator, which automatically opens the nozzle by means of controlled air pressure. When activated, the wall mounted nozzle sprays a high impact fan of cleaning media directly toward the soiled area. Through controlled and repeated rotation of the equipment with shadow areas, such as agitator blades, the wall mounted tank cleaning nozzle hits the shadow areas, ensuring 100% cleaning coverage and high-precision, high-impact cleaning. Upon completion of the cleaning cycle, the integrated spring mechanism returns the piston to its original position, securely closing and sealing off the wall mounted cleaning nozzle. If purging is required, always operate with actuator.

Cheese factory 640X360.jpg

Safeguard cheese production with 100% cleaning coverage of tank shadow areas


To increase cheese production by expanding its milk reception, a large Scandinavian dairy turned to the Beritech Group, an experienced tank and system builder. The objective was to guarantee complete cleaning coverage for two new 30-metre-high raw milk silos with bottom-mounted agitators.


Read the case story here


Get the full overview


Close at hand catalogue about tank equipment

At your fingertips: Alfa Laval hygienic tank cleaning equipment to ensure fast, effective cleaning cycles that save energy and water. Our ‘Close at hand’ catalogue details everything you need for high cleaning efficiency with static spray balls, rotary spray heads and rotary jet heads. What you get is increased safety, more uptime, and greater productivity.

Close at Hand front image tank equipment 640x360

Services for Hygienic Tank Equipment

Get more out of your hygienic processing lines. Keep your Alfa Laval tank cleaning machines in top operating condition through services that extend the lifetime of your static spray balls, rotary spray heads and rotary jet heads. Let our global service network and local service experts optimize performance and provide you with total peace of mind.

Service 640x360

Grow your business. Optimize your fluid handling systems – sustainably

Make your processes more efficient and more sustainable while achieving regulatory compliance and ensuring your business thrives. With Sustainable Optimization from Alfa Laval, you can save up to 80% in energy savings as well as 90% in water savings and cleaning media, while minimizing waste. Good for people. Good for planet. Good for profitability.

Sustainable optimizat640

Bring your sustainability strategy to life

Get more energy and water savings and reduce emissions from your hygienic processing lines. Our monthly newsletter, near, brings you stories about how Alfa Laval can support you in improving environmental performance across the dairy, food, beverage, home-personal care and pharmaceutical industries. What’s good for people and planet is good for your business too.
