Biological wastewater treatment

Many municipal wastewater treatment works face challenges e.g. related to meeting new stricter discharge criteria and insufficient capacity but limited space for expansion. Others are looking into water reclamation for the benefit of the local community. Alfa Laval offers several innovative, flexible and highly efficient biological wastewater treatment technologies as alternatives to more traditional methods.

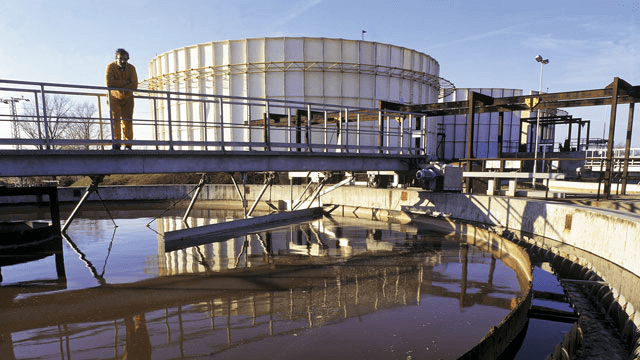

Biological wastewater treatment 640x360

Biological wastewater treatment process with Alfa Laval

  • High efficiency
  • Flexibility
  • Small footprint
  • Have all steps in the same tank

Alfa Laval technologies for biological wastewater treatment are ideal for removal of nutrients, organic matter, fats, oil and grease (FOG), and other undesirable micro particles and substances.

Where influent flow and organic loads vary and effluent requirements are stringent the Alfa Laval AS-H Sequencing Batch Reactor(SBR) with our patented floating decanter is a good choice for secondary biological treatment. Combine it with the Alfa Laval AS-H Iso-Disc® Cloth Media Filter for tertiary treatment to get effluent of water reuse quality (5-10 µm) and <5 mg/l suspended solids and <10 mg/l BOD at a rate of 10-15 m3/h/m2.

Alternatively, install the all-in-one Alfa Laval Membrane bioreactor (MBR) system, that combines secondary and tertiary wastewater treatment and delivers a superior effluent quality (effective filtration in sludge to 0.2 µm) suitable for reuse. It removes suspended suspended solids down to <1 mg/l, BOD down to <5 mg/l and handles 5-40 liter/h/m2 filtration area. The gravity driven, pump free and energy efficient design with compact membrane filtration modules (MFM) is based on our patented hollow sheet technology. Compared to other MBR solutions it offers improved safety, simplicity of operation, plus low operation and maintenance costs

Services

Extending the performance of your wastewater treatment equipment

Our dedicated Global Service Network supports you with parts and expertise, wherever you are, whenever you need it. By ensuring greater uptime, availability and optimization, we help bring you peace of mind, and maximize your return on investment. We can work with you to integrate our services into an Alfa Laval Service Agreement for predictable and worry-free operations.

Learn more about our service offer

How can we help you?

How can we help you?Please contact us with any queries or questions.

Contact us

Wastewater - an untapped water resource

More and more realise that wastewater can also be a valuable water resource. There are many good reasons to consider reusing biologically treated municipal and industrial wastewater: Increase water resources, reduce intake of new water and limit effluent flow loads to sewers.

Reclaimed water can be used for numerous applications e.g. industrial process water, cooling towers and wash water; surface irrigation of crops, vineyards and golf courses; recreation lakes, wetlands, wildlife habitat and stream augmentation and ground water recharge.

Water treated with Alfa Laval MBR and AS-H Iso-Disc filtration systems can even be used as potable water if a final polishing step e.g. UV radiation, ultrafiltration, nanofiltration, reverse osmosis, active coal, ozone or chlor is added.

Solutions for the Circular Economy

More and more wastewater treatment plants are discovering the benefits of a circular, holistic approach to wastewater treatment. Cost savings, reduced environmental impact and new income streams from recovered resources are but a few. Every wastewater treatment plant is unique and has its own set of challenges and opportunities. With our expertise in processing and our broad range of products, we can support your shift to a circular resource flow. Regardless of whether you are a contractor, designer or plant operator we can help you find the optimum solution for your specific project.
